Bac fixe

Name: Bac fixe
Brand: CtrlWorks
SKU: fixed-tray
Availability: OutOfStock

Cabinet System

Produits

Bac fixeCabinet SystemCtrlWorks Cabinet System

Conçu pour l'équipement de support dans des armoires de réseau et de serveur standard de 19 pouces, fixes et montées sur rails à crémaillère avant et arrière
Tailles optionnelles disponibles, conception de structure brevetée
Capacité de charge statique à plat: 90KG
Matériel: Tôles en acier laminées à froid de haute qualité
Couleur: Noir
Accessoires: Vis M6×12 Torx et écrous M6

Informations de commande

Nom	Modèle	Largeur	Profondeur	Profondeur du Cabinet correspondant	Capacité de charge
45 Bac	700145100	485	300	Armoire murale de 450mm	40 kg
66 Bac	700160101	485	450	Armoire murale de 600mm	40 kg
60 Bac	700160100	485	350	Armoire de 600 mm de profondeur	110 kg
80 Bac	700180100	485	550	Armoire de 800 mm de profondeur	110 kg
90 Bac	700190100	485	617	Armoire de 900 mm de profondeur	110 kg
10 Bac	700110100	485	717	Armoire de 1000 mm de profondeur	110 kg

Cabinet System

Reserved routing channels for various cables, with specially designed cable routing holes on corner brackets; exquisite appearance, elegant and premium style.
Segmented top cover for flexible use; fully open or closable bottom, removable lockable side panels, ergonomic handles for easy opening.
High-strength corner brackets, with adjustable depth (forward/backward).

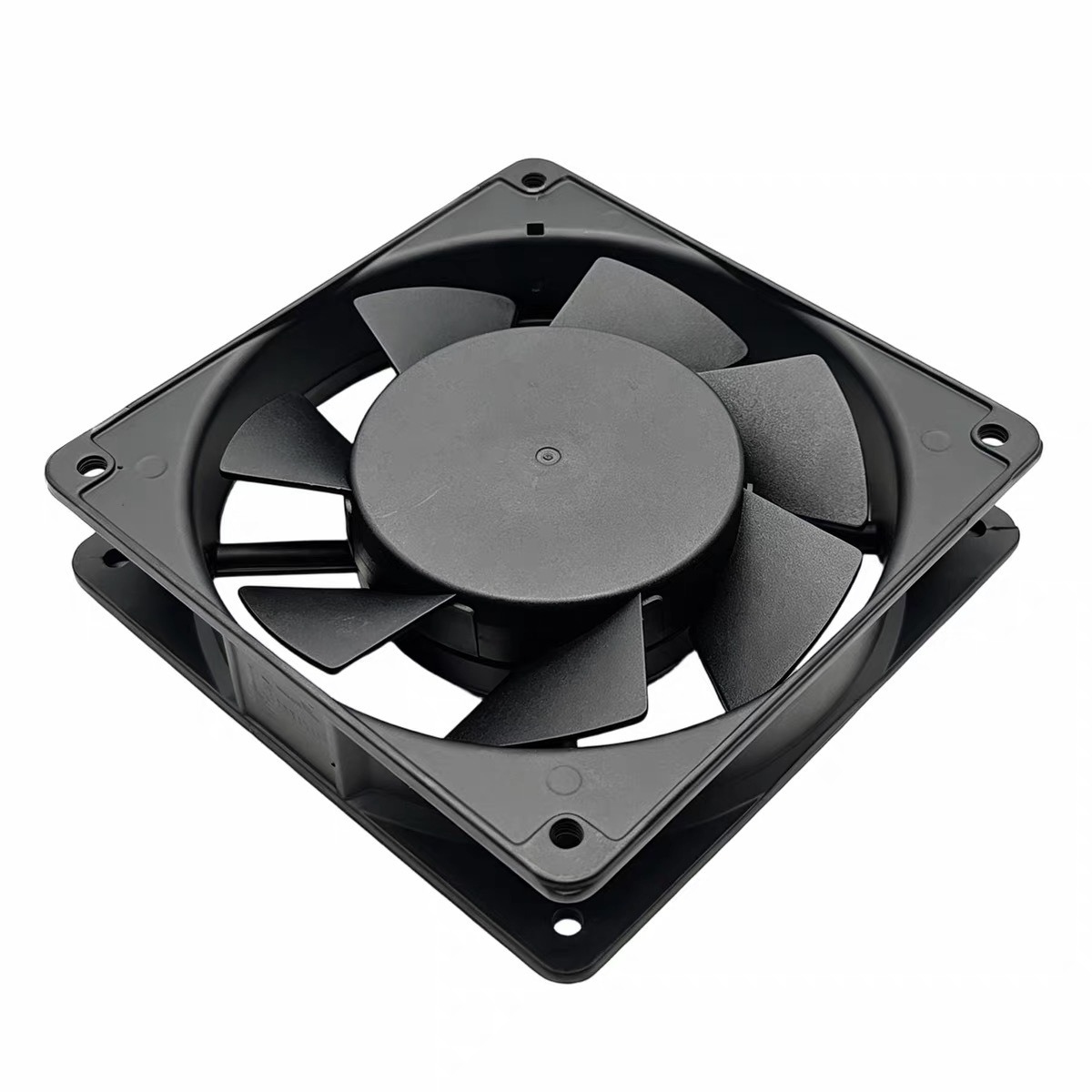

Fan units mounted from the top for easy maintenance and replacement.
Pre-installed floor mounting holes, lifting holes and earthing studs to meet on-site installation requirements.

Excellent natural ventilation and heat dissipation performance, ideal for housing active server equipment.
It fulfills requirements including mechanical protection, heat dissipation, ventilation, and external status monitoring of equipment, with an exquisite and elegant design.
Modular assembly structure, available in knockdown packaging to reduce transportation costs.
Patented frame structure for stable construction and tidy cable routing.
High-strength rack rails, adjustable forward and backward in depth direction.

Multiple cable routing channels are reserved, which can be opened or closed as required.
The frame features specially designed patented cable routing holes for concealed and tidy cabling.
It also has an appearance patent, with an exquisite, elegant and premium design.
Removable left, right, front and rear doors for easy operation.
High-load-bearing heavy-duty rack rails, adjustable forward and backward in the depth direction.

Two cable routing channels at the top and bottom The opening direction of the front door can be freely adjusted as required; quick-opening side doors support two installation methods Pre-installed wall mounting plates for easy cabinet installation.
It can be locked with screws from the inside to prevent theft or accidental falling The mounting depth of the rack rails can be adjusted back and forth as required
