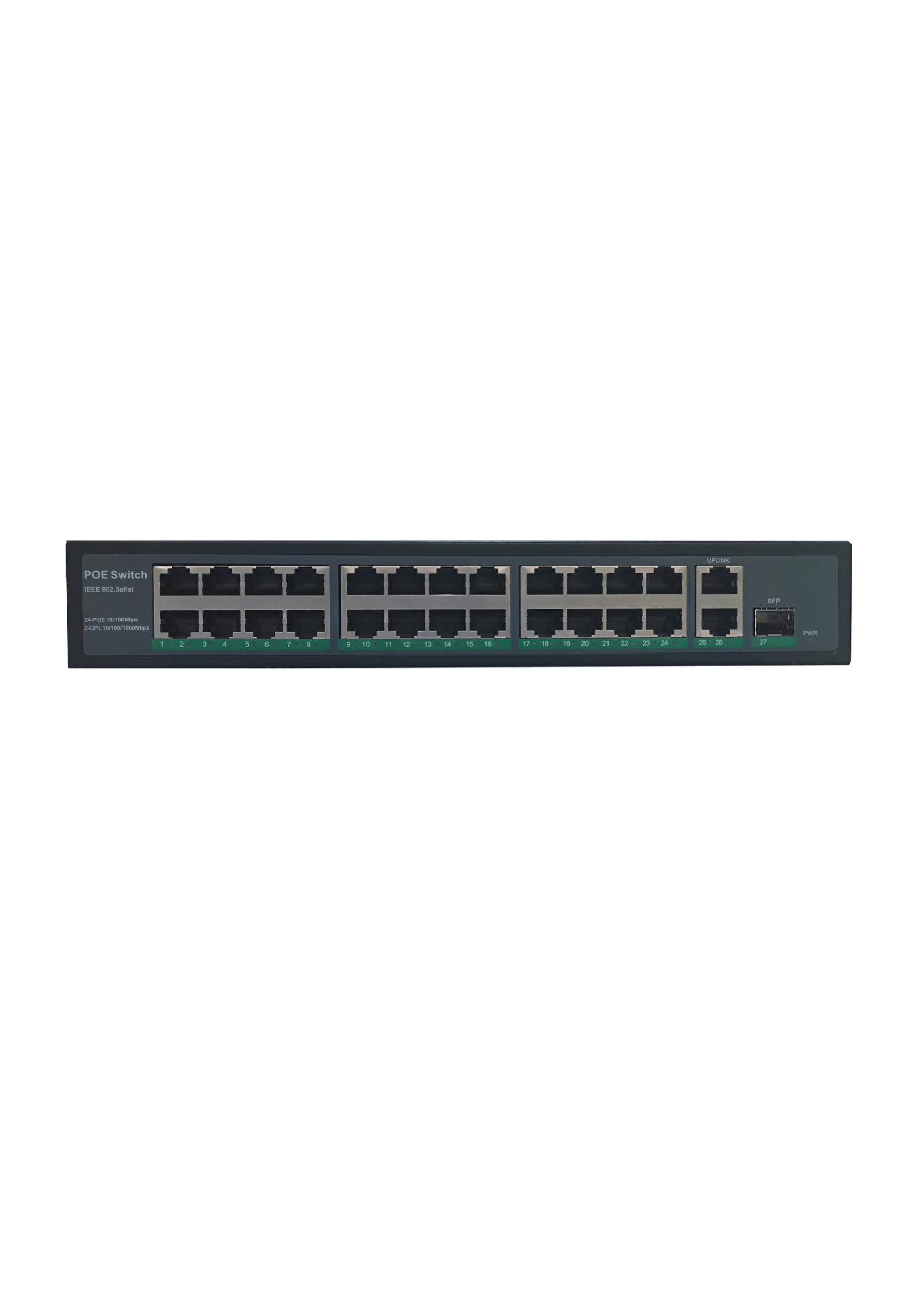

CW-PAG-F1R18-16+2+1-Port Gigabit PoE Switch
Network Infrastructure
16+2+1-Port Gigabit PoE Switch
- Port Configuration: 16 PoE ports (≤30W per port) + 2 Gigabit Ethernet ports + 1 Gigabit fiber port (module required)
- Power Capacity: Total PoE power output of 250W, capable of fully powering 8 devices at 30W each
- Performance: Unmanaged plug-and-play, 14.4 Gbps backplane bandwidth, 10.7 Mpps packet forwarding rate
- Transmission: Wired ports ≤ 250 meters (Cat5e+); fiber ports support 20 km/550 m (single-mode/multi-mode)
- Design: Built-in power supply, fanless and silent operation, dimensions 270 × 180 × 42 mm, 2-year warranty
$24.00 - $32.00
Technical Specifications for 16+2+1-Port Gigabit Uplink POE Switch (250W, National Standard)
1. Key Specifications
- Model: Gigabit Uplink 16+2+1 Port POE Switch (16 Ethernet Ports + 2 Ethernet Ports + 1 Fiber Port)
- Certification Standards: Complies with Chinese National Standard (GB/T-250W), total POE power output 250W (2-year warranty)
- Uplink Interfaces: 2 Gigabit Ethernet ports + 1 Gigabit SFP fiber port (hot-swappable)
- Management Type: Unmanaged (Plug-and-Play)
2. Port Configuration
- POE Ports: 16 auto-negotiating 10/100/1000 Mbps RJ45 ports
- Single-port POE power ≤ 30W (IEEE 802.3at standard)
- Total POE power: 250W (can simultaneously supply full power to 8 devices at 30W each)
- Uplink Ports:
- 2 Gigabit Ethernet ports (for stacking or uplink connections)
- 1 Gigabit SFP fiber port (supports single-mode/multi-mode modules, with selectable transmission distances of 20 km or 550 m)
3. Performance Specifications
- Backplane Bandwidth: 14.4 Gbps (non-blocking switching architecture)
- Switching Capacity: 28.8 Gbps (full-line-rate forwarding)
- Packet forwarding rate: 10.7 Mpps
- Transmission Distance:
- Ethernet ports: ≤250 meters (Cat5e or higher cable)
- Fiber ports support 20 km for single-mode / 550 m for multi-mode (requires optional module)
- VLAN Support: Does not support port-based VLANs (basic Layer 2 switching)
4. Power and Energy Efficiency
- Input Power: AC 100–240 V (built-in power supply)
- Total Power Consumption: ≤250W at full POE load, <10W in standby
- POE Protocol: Supports IEEE 802.3af/at (automatic PD detection)
5. Physical Specifications
- Dimensions: 270 × 180 × 42 mm (desktop/rack-mount design)
- Weight: 2.3 kg (including built-in power supply)
- Cooling Design: Fanless passive cooling, operating noise 0 dB
- Protection Rating: IP40 (dust-proof design)
6. Environmental Adaptability
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -40°C to 70°C
- Humidity Range: 10%–90% RH (non-condensing)
7. Safety and Reliability
- POE Protection: Automatic power-off protection against overcurrent, short circuit, and overheating
- Surge Protection: 6 kV lightning protection for Ethernet ports
- Warranty: 2-year limited warranty
