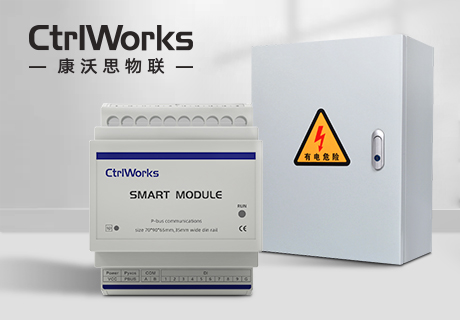

Basic Parameters of Intelligent Relay Modules

• Functions: supports start and stop of lamps, light switches, blinds control, and delayed start of multiple circuits (to avoid network interference).
• Intelligent interconnection: Through Pyxos bus interface, it can be connected with intelligent control system; module failure will not affect the bus connection.
• Maintenance concept: Plug and Play, “guaranteed” maintenance support.
• Parameters
  • Power consumption: 180 mA @ 12V
  • Operating temperature: -10℃~50
  • Relay load: 250VAC/16A ( optional model 20A)
  • COM port baud rate: 1200~115200 bps
• Model Selection
  • 4 way: CW.RY040416 (16A), CW.RY040420-A (20A)
  • 8-way: CW.RY080816 (16A), CW.RY080820-A (20A)
  • All support manual operation and current sensing (optional)

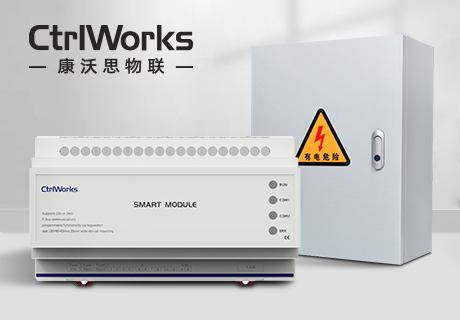

Basic settings for multi-protocol dimming modules

• Adaptive Light Source: Fully supports dimming of incandescent, halogen, low voltage halogen and LED light sources.
• Protection features:
  • Soft Protection: Supports scene/smooth switching (extends bulb life).
  • Overcurrent Protection: Automatically shuts off excess power (protects the integrity of the device).
• Most important settings :
  • Power consumption : 180 mA @ 12V.
  • Operating temperature: -10℃~50
  • Relay output: Single 250VAC/16A ( 20A model optional).
  • COM port baud rate: 1200~115200 bps

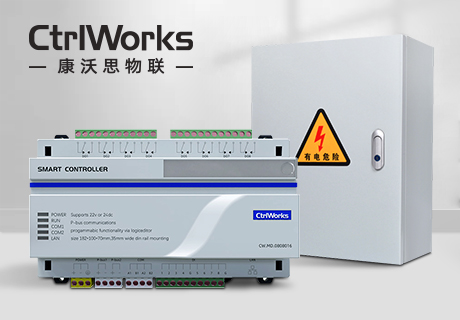

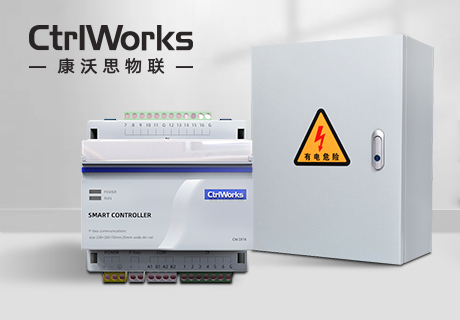

Basic settings of the Global Intelligent Control Module

• Functional scope: Support for HVAC, lighting, blinds, water supply and drainage, fresh air supply, energy distribution monitoring and energy management, and integrated IoT application scenarios.

  .

• Open Interfaces: Provides TCP/IP interfaces, dual RS-485 interfaces compatible with Ethernet, Modbus, Lonworks and other protocols, and supports multi-device/network integration.

  User-friendly design: Provides TCP/IP and dual RS-485 interfaces.

• User-friendly design:
  • Dedicated graphical configuration software simplifies logical configuration.

    User-friendly design

  • Powerful built-in logic operations for flexible adaptation to complex scenarios.
• Guaranteed reliability:
  • Resistance ≥ AC1500V/50Hz (70 seconds without failure).

    .

  • Operating Temperature: -10℃~50℃, Humidity setting 0%~95% RH (no condensation).
• Model Configuration ( All models are equipped with Dual RS-485+ Ethernet bus, Wi-Fi/PACnet/Paxos bus optional):
  • CW.MD: Connection type only (no I/O).
  • CW.MD.8744: 8 switching inputs + 4 relay outputs.
  • CW.MD.MD0404O16: 4 inputs + 4 outputs (16A relay)
  • CW.MD.MD.0808O16: 8 inputs + 8 outputs (16A relay)

CW Series Intelligent Switch Acquisition Module

The CW series modules are designed for all types of switch sensors and can be connected to infrared motion detection, curtain detection, infrared counters, door magnets, window magnets, smoke sensors, gas alarms and general switch panels. Three models are available: 5-channel (CW.DI05), 16-channel (CW.DI16), and 16-input + 16-output (CW.1616G) to meet the needs of different sized applications.

The modules are independently powered with an operating voltage of 12 V and power consumption of only 180 mA. They are suitable for wide temperature environments from -10°C to 50°C. They support Bacnet/Pyxos fieldbus protocols for seamless integration into building automation and intelligent security systems, and the COM ports have an adjustable transmission speed (1200~115200 bps) to ensure stable and reliable data transmission. Suitable for smart home, industrial automation, security monitoring and other scenarios, providing flexible and efficient solutions for switching and control signals.

Basic characteristics of ducted CO₂ sensors/transmitters

• Application Scenarios: Intelligent buildings, HVAC systems (e.g. airports, subway stations, garages, etc.), automatic control of ventilation systems based on CO2 concentration, reduction of energy consumption.
• Sensing Principle: Near Infrared (NDIR) technology, high precision, no interference.
• Accuracy range: ± (30~50) ppm + (3%~10%), response time less than 10 seconds, automatic calibration.
• Output Signal
  • Analog: 4~20mA, 0~10VDC.
  • Digital signal: RS485 (half duplex, 2-wire, communication distance ≤ 1200 meters).
• Environmental adaptability :
  • Operating temperature: -10℃~60℃, humidity 0~95% RH (non-condensing).
  • Storage temperature : -40℃~70

Basic parameters of CO2 line sensors

• Application: Automatic control of ventilation systems in garages, workshops and other places.
• Detection: Electrochemical principle, accuracy ± (3~5) ppm, response <10 sec.
• Output: 4~20mA / 0~10V / RS485 (communication distance 1200 meters).
• Environment: Operation -10~60℃, Storage -40~70℃, IP protection.
• Installation: Pipe flow probe, standard calibration

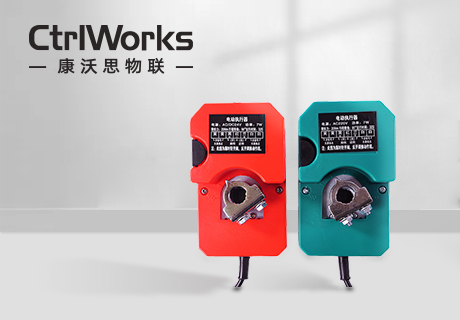

Basic settings for valve actuation

• Application: End control of central air conditioning systems for VAV/ventilation/cooling.
• Torque options: 8/16/24/32 Nm .
• Control modes
  • Switch type: 2-point control / 3-point control.
  • Control mode: 0-10 V / 4-20 mA analog.
• Feedback signal: 0-10 V / 4-20 mA (optional auxiliary switch).
• Environmental adaptability operation -20~50℃, storage -30~80℃, humidity 5~95% RH

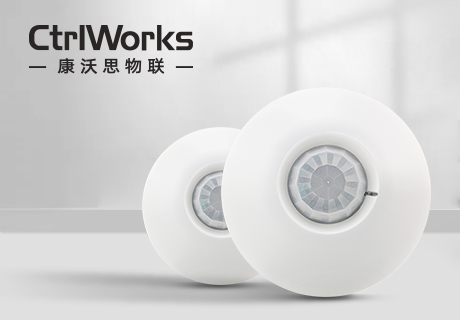

CW.IDS Microwave Detector Basic Settings

• Detection principle: Active microwave sensing, 360° detection (radius adjustable from 1 meter to 8 meters).
• Applicable loads: monitoring/alarm/LED lighting/extractor fan, etc. (power ≥ 0.2W).
• Penetration ability: can be used through doors/windows/walls.
• Environmental adaptability: working voltage DC12-24V, light control 10-500LUX.
• Energy-saving mode: automatic time-delayed shutdown when there is no cell phone signal.

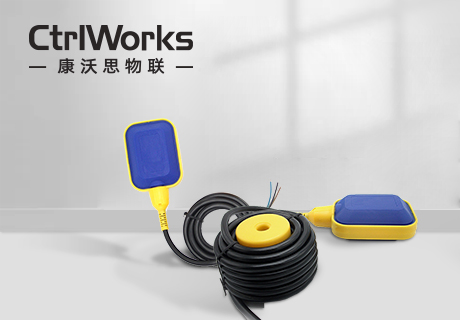

CW.MAC3 Level MAC3 Basic Key Parameters

• Principle: Mechanical float switch, operating angle ±45°.
• Load capacity: 10A/250V～380V (micro switch)
• Durability IP68 protection class, switch life ≥ 50,000 cycles.
• Environmental adaptability: Operating temperature 0-50°C, storage temperature -20-80
• Application: Liquid pump control / submerged pump protection, alarm current ≤ 50mA.

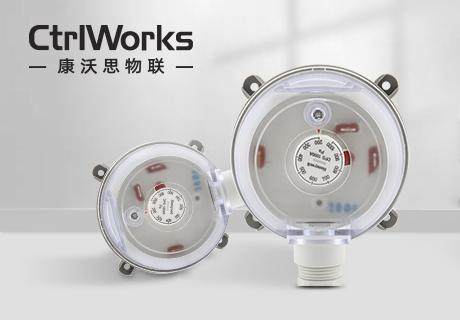

Differential pressure switch CW.

• Application: Differential pressure control of ventilation ducts/industrial gases (non-corrosive gases)
• Measuring range: 20-200 Pa/30-300 Pa (return ±15)
• Output: 2.5A/250V AC or 5A/24V DC
• Durability: Mechanical life > 1 million times (silver composite contacts)
• Working environment -20~85℃, pressure 10kPa, IP protection

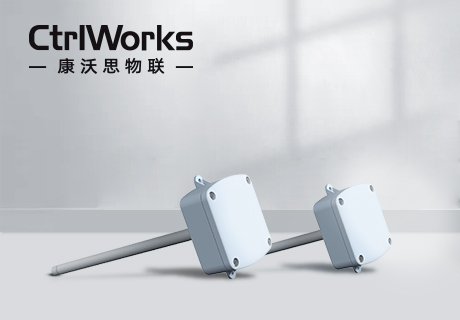

CW-702 Basic Settings for Water Pipe Temperature Transmitter

• Application: Air conditioning water system/chiller temperature measurement/treated water for various environments.
• Accuracy: ±0.3℃/±0.5℃/±1℃ (Response 2-5 minutes).
• Output: 4-20mA/0-10V/RS485 (connection distance 1200 meters).
• Protection grade : IP grade, working temperature -20~80℃ (anti-condensation design).
• Installation: Multi-probe length optional, need to support the fuselage protection.

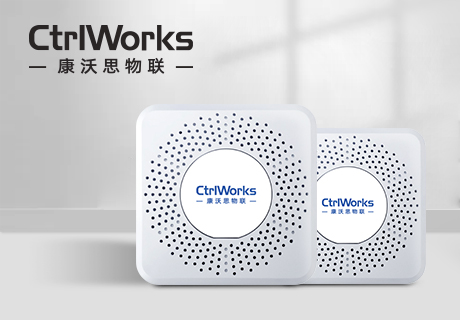

PM2.5 Basic parameters of indoor sensors

• Detection principle: Optical particle counting (1 µm particles +) with an accuracy of ± 10 µg/m³ ± 10 %.
• Output signal 4-20mA/0-5V/0-10V/RS485 (Modbus protocol, 1200 meters connection).
• Environmental adaptability: working temperature -10~60℃ (20-80% RH), response time 15 minutes.
• Application Scenario: Intelligent Building/Air Conditioning/HVAC/Heating and Cooling System, support factory/office environment monitoring.
• Calibration and Maintenance: Standard calibration, IP protection (anti-condensation design).

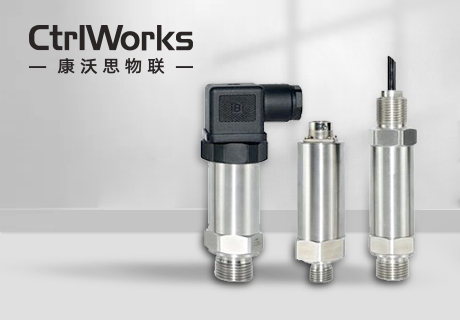

CW-301 Pressure Transmitter Basic Parameters

• Measuring range: liquid/gas pressure (compatible with 316L material)
• Accuracy level: ±0.25%FS/±0.5%FS/±1%FS optional
• Output signal: 4-20mA/0-5V/0-10V/RS485 (Modbus protocol)
• Structural features miniaturized design, multiple interface options, corrosion-resistant customization.
• Installation and maintenance: ready to install, IP rating

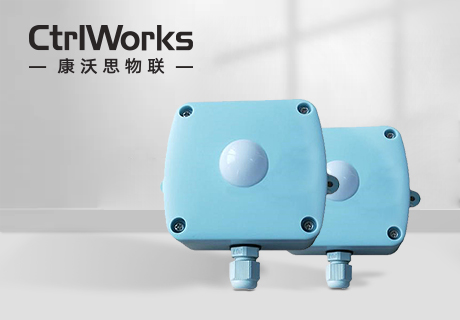

CW-905 Basic settings for the light level transmitter.

• Measuring range: 0 – 200,000 lux (visible light 400 – 700 nm), response time <5 seconds.
• Accuracy ±3% ~ ±10% of visible light Optional IP65 degree of protection (with waterproof connector).
• Output signals 4-20mA/0-10V/RS485 (Modbus protocol, address adjustable).
• Installation features Compact and portable, universal for indoor and outdoor, supports communication code/software configuration.
• Connection configuration: baud rate 1200-38400 bps (standard 9600), data format 8N2.

Basic Parameters of CW-601 Temperature and Humidity Transmitter

• Measurement performance: temperature ±0.3℃~±1℃, humidity ±2%~±5%RH (response within 2-5 minutes).
• Protection design: polymer filter, moisture-proof and dust-proof, prolonging service life.
• Output signal: 4-20mA/0-10V/RS485 (industrial standard interface).
• Application Scenario: HVAC/Engine room/Agriculture/Biopharmaceutical and other environmental control.
• Installation features: ducted probe design for dusty and humid environments.

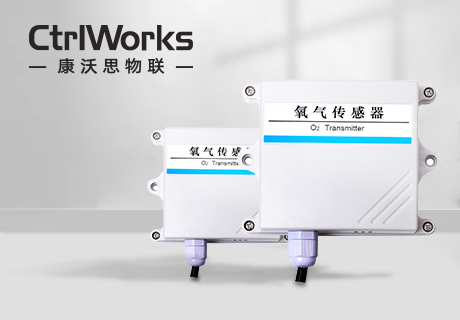

Basic Parameters of CW-811 Oxygen Transmitter

• Sensing principle: electrochemical sensor, accuracy ±2%FS, response time ≤10 seconds
• Range option 1PPM / 0.1%V / 0.01%V Accuracy
• Output signal: 4-20mA / 0-5V / 0-10V / RS485 (industry standard interface).
• Typical applications: medical/laboratory/air-conditioning systems, supporting automatic ventilation control.
• Environmental adaptability: IP protection class, working temperature -10~50℃.

CW-809 VOC Transmitter Basic Settings

• Gas Detection: Toluene/Ammonia/Alcohol and other VOCs, including temperature and humidity compensation.
• Sensor: Metal Oxide Semiconductor, Service life: 5-7 years.
• Performance: Accuracy ±3%~5%FS, Response time 60 seconds (T90).
• Ausgang: 4-20mA/0-5V/0-10V/RS485.
• Stabilization time: 15 minutes warm-up time, energy-saving design.

Transmitter Basic Setup CO₂ CW-808

• Sensing Principle: NDIR infrared technology, Accuracy ± (30~50) ppm ± (3%~10%).
• Response speed: <10 seconds, can be auto-calibrated.
• Output signal: 4-20mA/0-5V/0-10V/RS485 (industrial standard interface).
• Intelligent control: automatically start and stop the ventilation system according to CO2 concentration.
• Applicable scenes: garage/workshop/intelligent building, energy-saving ventilation system control.

CW-807 CO Transmitter Basic Settings

• Sensing principle: Electrochemical sensor, accuracy ± (3~5) ppm ± (3%~5%).
• Response speed: <10s, support 4-20mA / 0-5V / 0-10V / RS485 output.
• Connection security: carbon dioxide exceeds the standard, automatically start the fresh air system operation.
• Applicable scenes: garage/building/station and other indoor scenes.
• Stability: Imported sensor chip, long-term reliable.

CW-801 Temperature and Humidity Transmitter Basic Settings

• Measurement accuracy: temperature ±0.3℃~±1℃, humidity ±2%~±5%RH (response 2-5 minutes).
• Display function: industrial LCD screen, real-time display of temperature and humidity data.
• Output signal: 4-20mA/0-5V/0-10V/RS485 (industrial standard interface).
• Installation features: small and exquisite, ready to install, suitable for PLC/inverter and other equipment.
• Application Scenario: Indoor environment with high requirements for temperature and humidity.

16+2+1 Port Gigabit PoE Switch

• Port Configuration: 16 PoE ports (single port ≤ 30W) + 2 Gigabit electrical ports + 1 Gigabit optical port (optional module)
• Power supply capacity: total PoE power of the whole machine 250W, can be fully loaded for 8 sets of 30W equipment
• Performance: unmanaged plug and play, backplane bandwidth 14.4Gbps, packet forwarding rate 10.7Mpps
• Transmission: Electrical port ≤ 250 meters (Cat5e+), optical port support 20km/550m (single-mode/multimode)
• Design: Built-in power supply, no fan 0 noise, size 270×180×42mm, 2 years warranty

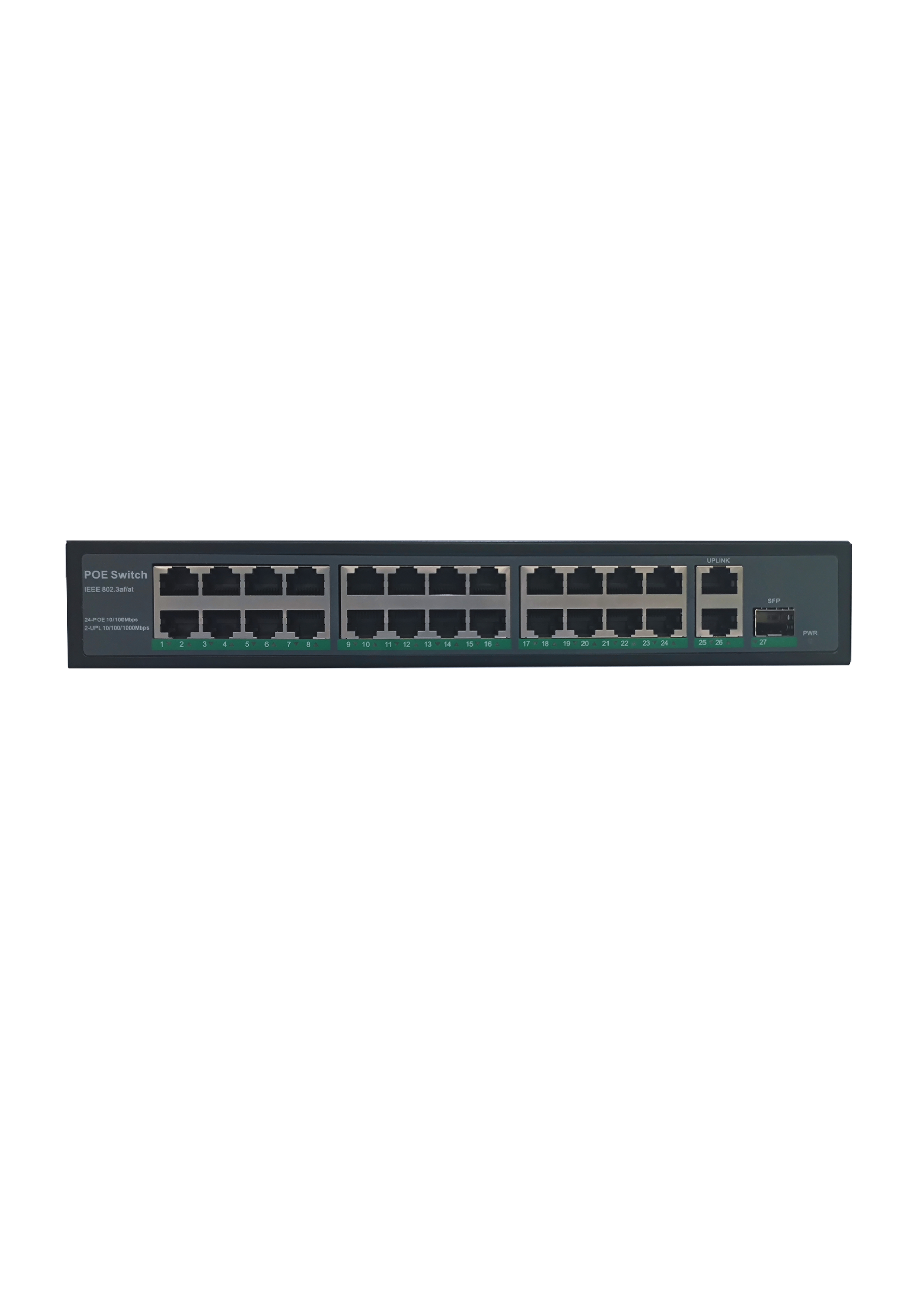

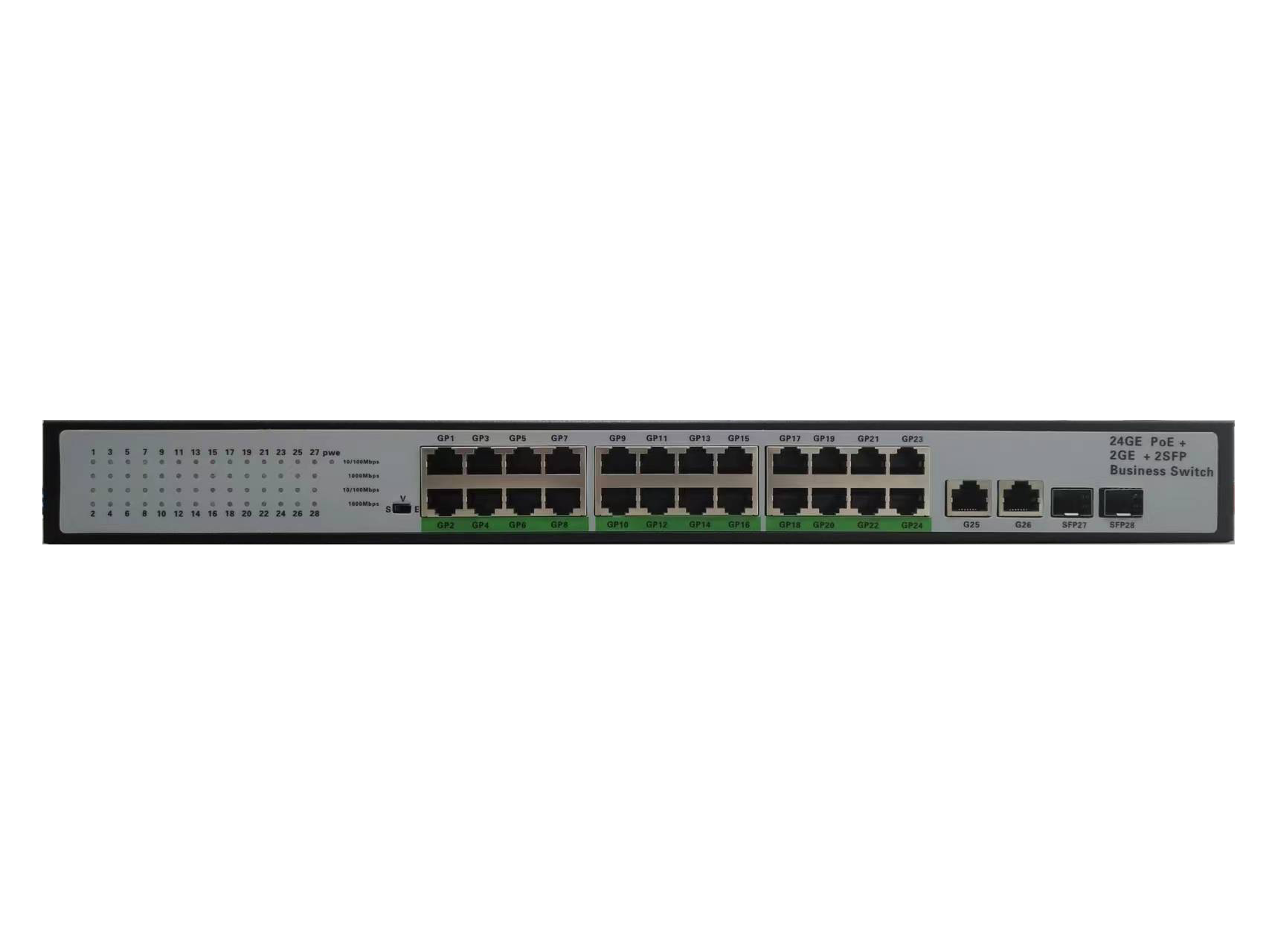

24+4 Gigabit PoE Switch 24+4 Gigabit PoE Ports

• Port configuration: 24 PoE ports (1 port ≤ 30W) + 2 Gigabit Ethernet ports + 2 Gigabit optical ports (optional modules).
• Power capacity: 400W total PoE power, fully chargeable for 13 sets of 30W devices.
• Performance: backplane bandwidth of 56 Gbps, packet throughput of 41.7 Mbps, support for 4K VLAN.
• Management: Web/CLI management of the core network, SNMP support, redundant power extension.
• Design: 1U rack mount (440 x 180 x 44 mm), intelligent temperature-controlled fan (noise <40 dB), 6kV lightning protection, 2-year warranty.

100Gb 4+2 PoE Port Switch

• Port Configuration: 4 PoE electrical ports (single port ≤ 30W) + 2 100Gb optical ports (supports 20km singlemode/multimode 550m)
• Power supply capacity: full PoE power is 65W, supports IEEE 802.3af/at standard, and can supply power to multiple devices at the same time.
• Transmission Performance:
  • Power port supports long distance transmission of 250 meters (Cat5e/Cat6 cable)
  • 1.6 Gbps backplane bandwidth with port VLAN isolation support
• Industrial design
  • Operating temperature -10℃~55℃, IP30 Dustproof, metal heat dissipation.
  • External power supply (AC 100-240V), whole power consumption ≤ 65W, standby <5W
• Safety and warranty: over-current/short-circuit/overheating protection, CE/FCC/RoHS certification, 2-year warranty.

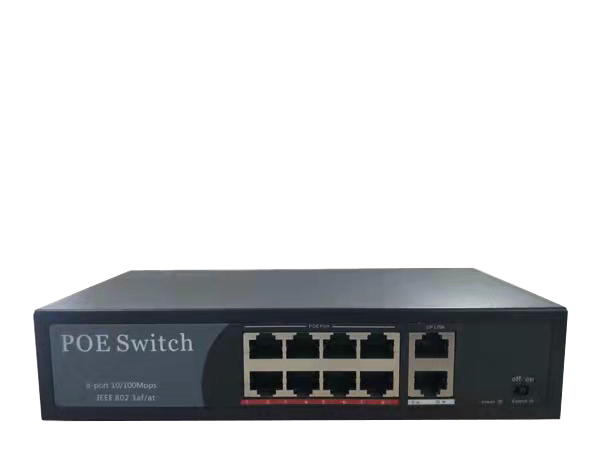

8+2 Port Gigabit PoE Switch 8+2 Port Gigabit PoE Switch

• Port Configuration: 8 electrical PoE ports (1 port ≤ 30W, IEEE 802.3af/at) + 2 Gigabit SFP optical ports (supports 20km single-mode optical ports/550m multi-mode ports)
• Power supply capacity: 120W full PoE device power supply, can fully charge 4 sets of 30W devices.
• Performance: Unmanaged Plug and Play, 10 Gbps backplane bandwidth, 20 Gbps switching capability, 250m (Cat5e+) support.
• Design: Metal housing (200 x 120 x 44 mm), fanless, noiseless, dustproof to IP30, DIN rail mountable.
• Reliability: 6kV lightning protection, overcurrent/short-circuit/overheat protection, extended industrial temperature range (0°C~50°C), 2-year warranty.
