Differential Pressure Switch
Smart Sensors

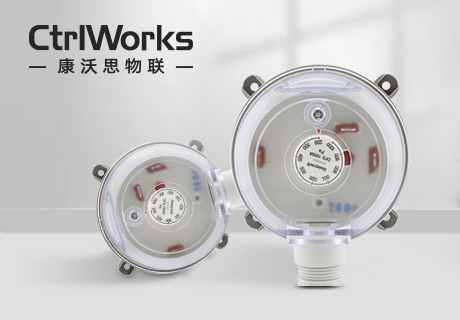

Differential pressure switch CW.
- Application: Differential pressure control of ventilation ducts/industrial gases (non-corrosive gases)
- Measuring range: 20-200 Pa/30-300 Pa (return ±15)
- Output: 2.5A/250V AC or 5A/24V DC
- Durability: Mechanical life > 1 million times (silver composite contacts)
- Working environment -20~85℃, pressure 10kPa, IP protection
$10.00 - $20.00
The CW.Yc series of differential pressure switches can be used to detect differential pressure, vacuum, overpressure and differential airflow of non-corrosive gases in piping. These products are used to monitor overpressure, vacuum and differential pressure of gases and are commonly used in building automation, ventilation equipment testing and industrial refrigeration gas monitoring.
| Differential Pressure Switches CW.Yc | Differential Pressure Switches | Differential Return Switches | ± 15 |
| Pressure setting range : | 20～200pa, 30～300pa | ||
| Differential switch setting | 10, 20, 30 | ||
| Electrical parameters | Signal output: | Max. 2.5A (0.4A)/250VAC, Max. 5.0A/24VDC | |
| Environmental parameters | Maximum working pressure | 10 kPa | |
| Operating temperature range | Average and ambient temperature -20… +85°C | ||
| Storage environment | Temperature -40… +80°C, humidity 0-95% RH, no condensation | ||
| Ambient | Gases: | Air, non-flammable gases and corrosive gases | |
| Service life | Mechanical life: | More than 1,000,000 cycles (exclusive high-performance silver lamination process) |
