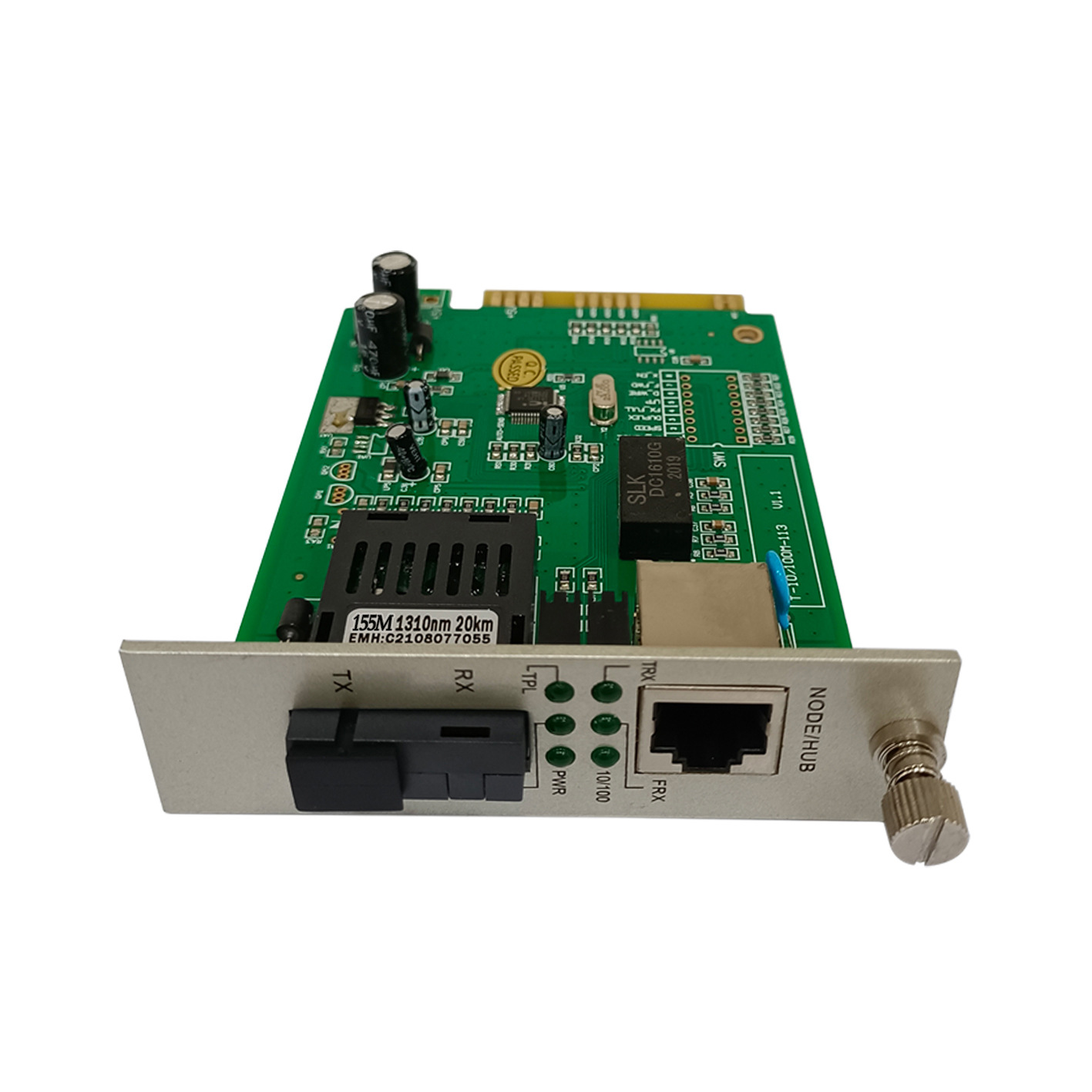

10/100M Card Media Converter (SM/MM, Single/Dual Fiber)

Name: 10/100M Card Media Converter (SM/MM, Single/Dual Fiber)
Brand: CtrlWorks
SKU: 10-100m-card-media-converter-sm-mm-single-dual-fiber
Availability: OutOfStock

Structured Cabling

Products

10/100M Card Media Converter (SM/MM, Single/Dual Fiber)Structured CablingCtrlWorks Structured Cabling

Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3d, IEEE 802.3Q protocols
Bandwidth: 10/100M for electrical port, 155M for optical port
Full-duplex / half-duplex mode with automatic full-duplex/half-duplex negotiation function
Electrical port: RJ45; Optical port: SC/FC/ST

Optical Specifications

Item	Single-mode	Multi-mode
Operating Wavelengt(Dual Fiber/Single Fiber)	1310nm, 1550nm	850nm, 1310nm
Operating Wavelengt(Dual Fiber/Single Fiber)	1310T/1550R 1550T(DFP)/1310R	1310/1550nm
Core Diameter	9/125μm	50/125μm, 62.5/125μm
Transmission Distance	20Km,40Km,60Km,100Km	2Km

Electrical & Physical Characteristics

Input Voltage	Centralized power supply via rack chassis slots
Output Voltage	DC 5V 1A
Operating Ambient Temperature	0 – 50℃
Relative Humidity	5%~90%
Overall Dimensions	115 * 77 * 26mm

Ordering Information

Model No.	Product Name
SM100	10/100M Multi-mode Dual Fiber Card-type Media Converter
SD100-20	10/100M Single-mode Dual Fiber Card-type Media Converter - 20Km
SSM100-X	10/100M Multi-mode Single Fiber Card-type Media Converter
SSM100-A	10/100M Multi-mode Single Fiber Card-type Media Converter - 1310
