Switch with 8+2 Gigabit PoE ports

• Port Configuration: 8 PoE ports (1 port ≤ 30W, IEEE 802.3af/at) + 2 Gigabit SFP ports (supports single-mode 20km / multimode 550m fiber)
• Power Capacity: 120W total PoE power supply, capable of fully powering 4 sets of 30W devices
• Performance: Unmanaged plug-and-play, 10 Gbps backplane bandwidth, 20 Gbps switching capacity, supports distances up to 250 meters (Cat5e+)
• Design: Metal enclosure (200 x 120 x 44 mm), fanless, silent operation, IP30 dust protection rating, supports DIN rail mounting
• Reliability: 6 kV surge protection, overcurrent/short-circuit/overheat protection, wide industrial temperature range (0°C to 50°C), 2-year warranty

• Performance exceeds the Cat.6 requirements specified in ANSI/TIA 568-C.2 and ISO/IEC 11801 standards.

• Gold-plated pins improve contact performance, prevent surface oxidation and extend service life.

• Unique cable protection cover secures core wires firmly, provides effective dustproof performance, and integrates cable crimping function.

• Compact structural design offers ample routing space for cables inside mounting boxes.

• Specially engineered staggered pin layout effectively improves Near-End Crosstalk (NEXT) margin.

• Performance exceeds the Cat.5e requirements specified in ANSI/TIA 568-C.2 and ISO/IEC 11801 standards.

• Integral die-cast metal construction provides full 360° shielding.

• Compact structural design delivers ample cable routing space inside mounting boxes.

• Split crossbar design effectively controls cable untwist length and enables quick tool-free termination installation.

• Specially engineered spatial layout of gold pins effectively improves Near-End Crosstalk (NEXT) margin.

•Performance exceeds the Cat.5e requirements specified in ANSI/TIA 568-C.2 and ISO/IEC 11801 standards.

•The cable slot forms a 45° angle with the cable routing direction, enabling easier installation and superior electrical performance.

•A protruding spike structure is provided in the middle of each pair termination slot. Cables can be separated and seated into slots without untwisting the front cable pairs, which effectively controls the untwist length and preserves the cable twist pitch.

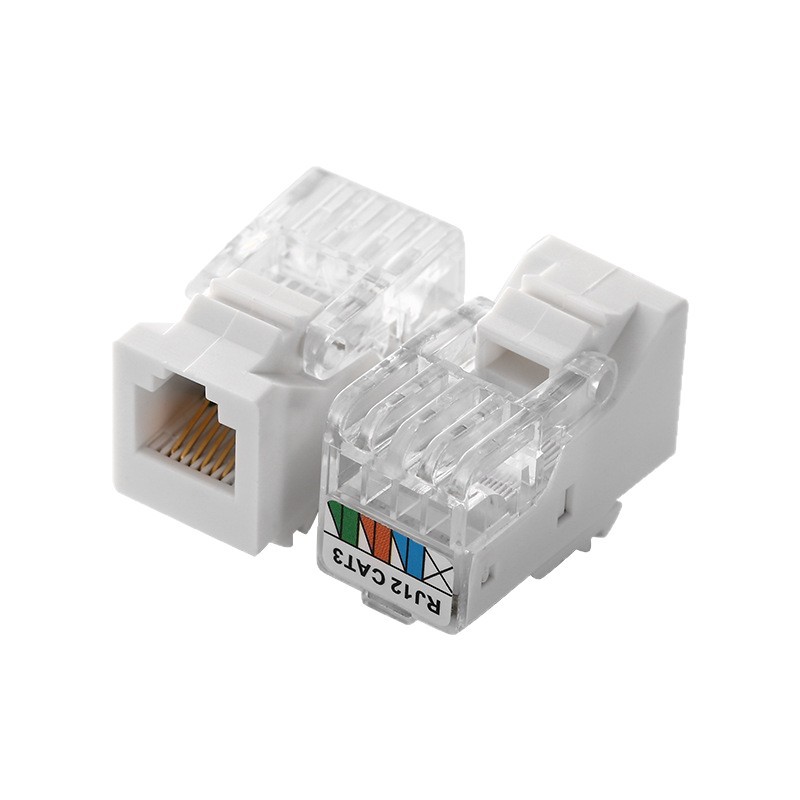

•Performance exceeds the Cat.3 requirements specified in ANSI/TIA 568-C.2 and ISO/IEC 11801 standards.

•Solid internal spring contact structure eliminates short circuit and open circuit risks entirely.

•Pioneered a 32° angled IDC spring contact design, which reliably pierces wire insulation and prevents cable pull-out.

•Compatible with standard punch-down tools for installation; wires can also be terminated by directly pressing the cable retention cover.

•Unique cable protection cover prevents cable dislodgement and blocks dust ingress.

•Clear wiring sequence markings on the module facilitate installation and maintenance.

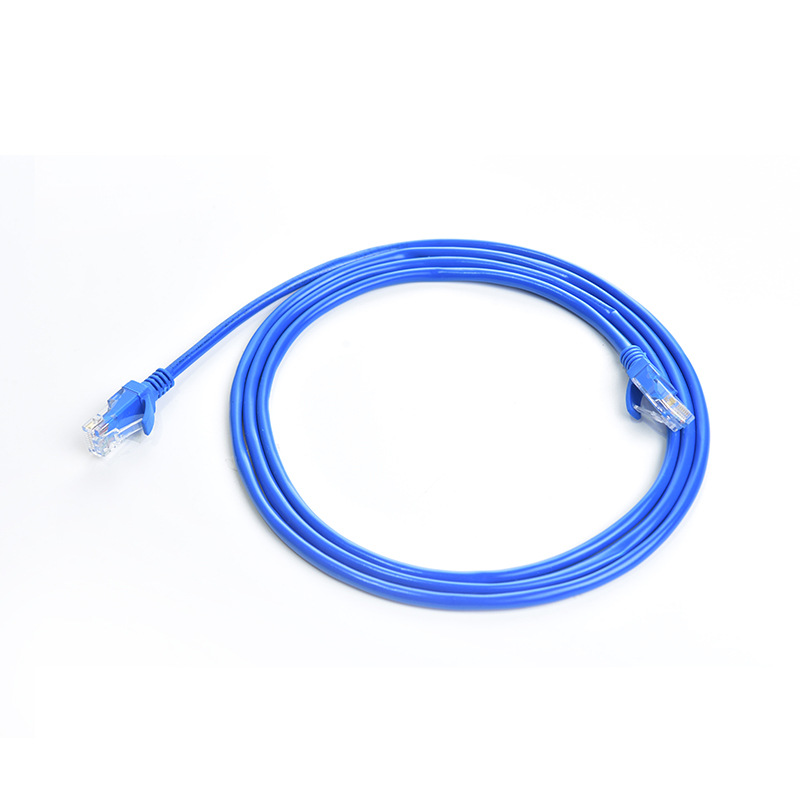

•Stranded conductor structure makes patch cords flexible, easy to bend and resistant to breakage.

•Gold-plated crimp contacts on RJ45 plugs guarantee superior electrical performance.

•Extended strain relief boot adopting gradient stress design delivers anti-slip and tensile resistance, while maintaining specified bend radius.

• Stranded conductor structure makes patch cords flexible, easy to bend and resistant to breakage.

• Gold-plated crimp contacts on RJ45 plugs guarantee superior electrical performance.

• Extended strain relief boot adopting gradient stress design delivers anti-slip and tensile resistance, while maintaining specified bend radius.

• Faceplates are available in 1-port, 2-port, 3-port, 4-port variants, compatible with standard 86-type mounting boxes.

• All faceplates come with dust shutters to effectively prevent water splashes and dust particle ingress.

• Equipped with label strips or application markers for easy numbering management and maintenance.

• Modular structure with double-layer front & rear panel design for an elegant appearance, concealing fixing screws.

• Material: Engineering ABS plastic.

• Standard 86-type faceplate with modular design, compatible with standard concealed mounting boxes.

• Injection-molded from premium engineering plastic, featuring smooth and stable color finish.

• Equipped with bridge-type cable retainers for reliable, safe and convenient on-site installation.

•Standard 86-type mounting box

•Easy to install, sturdy and durable

•Color: Ceramic White

•Material: Engineering ABS plastic

•Compliant with UL E136825 certification and FCC standards

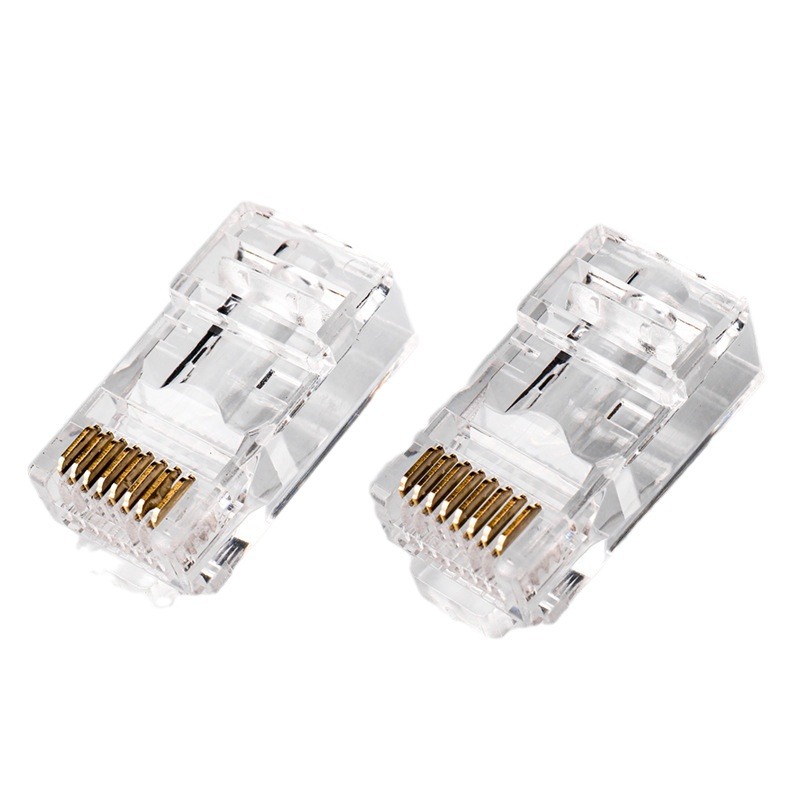

•Supports T568A & T568B wiring sequences

•Mating cycles: ≥1000 times

•Contact resistance test load: 20N

•Wire gauge: 23 ~ 26 AWG

•Housing material: Polycarbonate (PC)

•Contact spring: 3-prong design, phosphor bronze with gold plating

•Operating temperature: -25 ~ 60℃

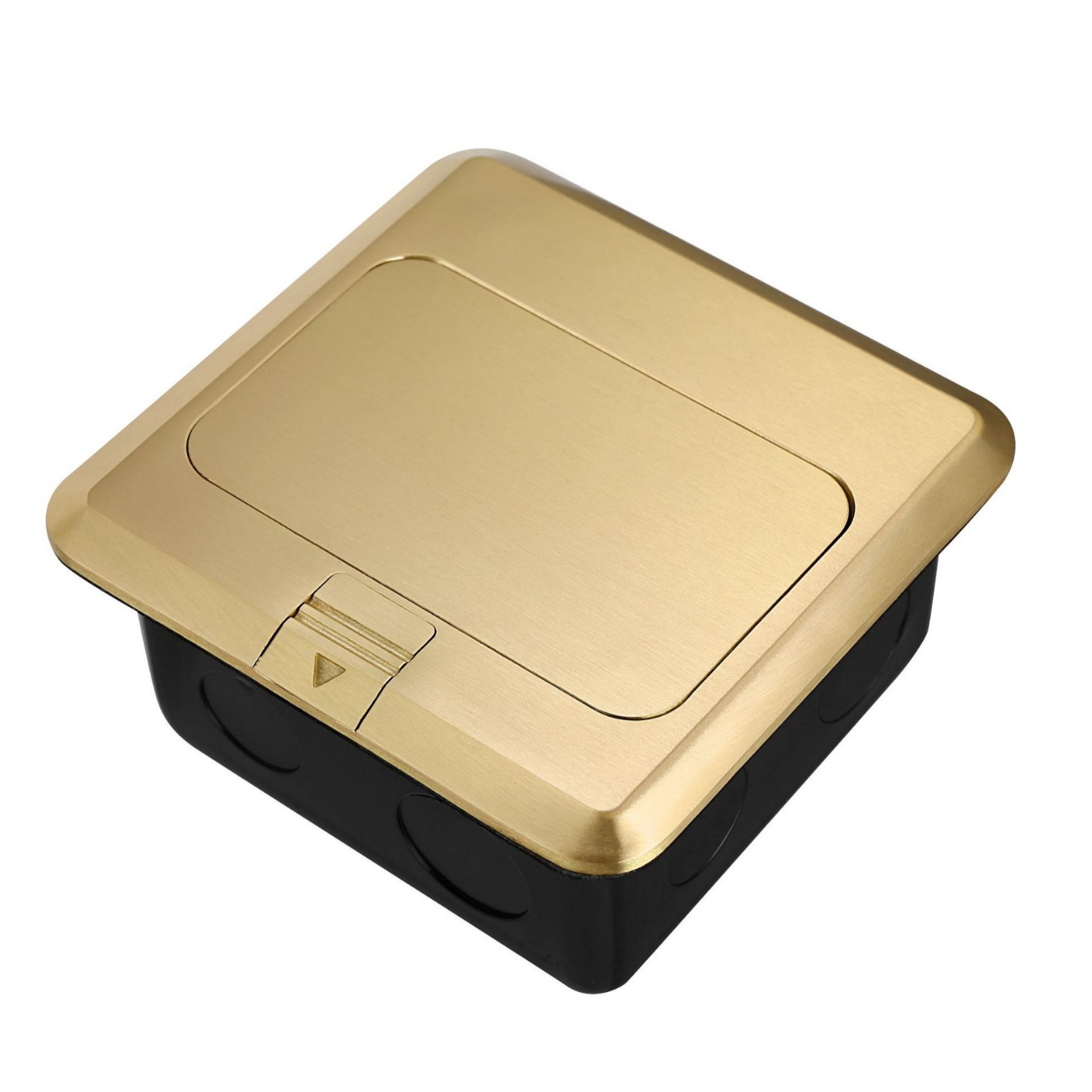

•Precisely cast from copper alloy with special surface polishing process, featuring high structural strength.

•Quick-replaceable functional components and detachable terminals to facilitate strong & weak current wiring; snap-fit design matches terminals for fast, convenient assembly.

•Unique screw hole design accommodates various screws including countersunk and round-head types for outstanding versatility.

•Pop-up design with built-in spring mechanism for easy and flexible opening operation.

•Dustproof and waterproof construction.

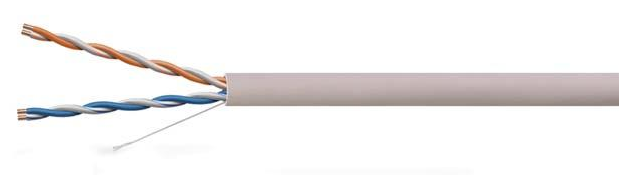

•Inkjet printing on cable surface with sequential meter marking, clear printing and accurate length metering.

•Sequential length marking printed on cable jacket to reduce material waste.

•Supports transmission of voice and data signals.

•Performance exceeds Cat6 requirements specified by ANSI/TIA 568-C.2 and ISO/IEC 11801.

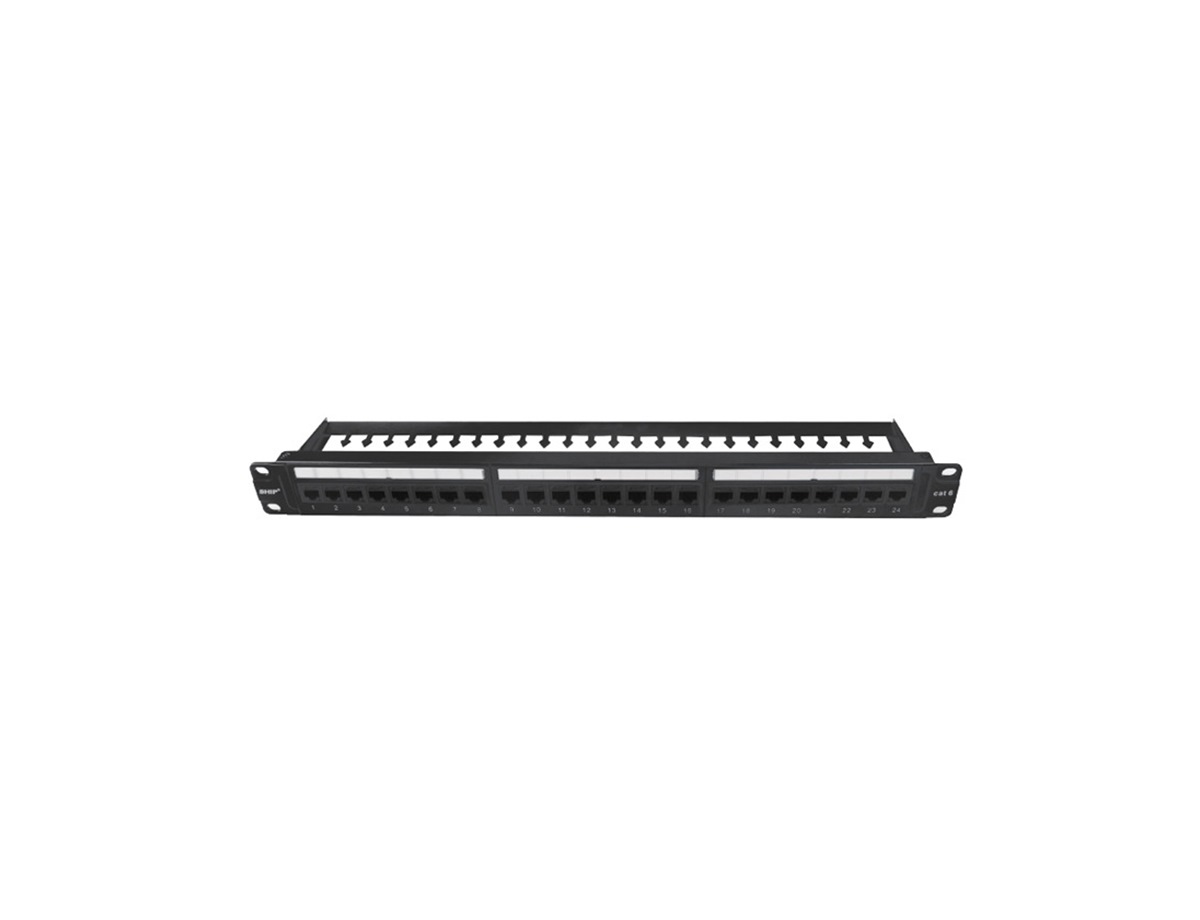

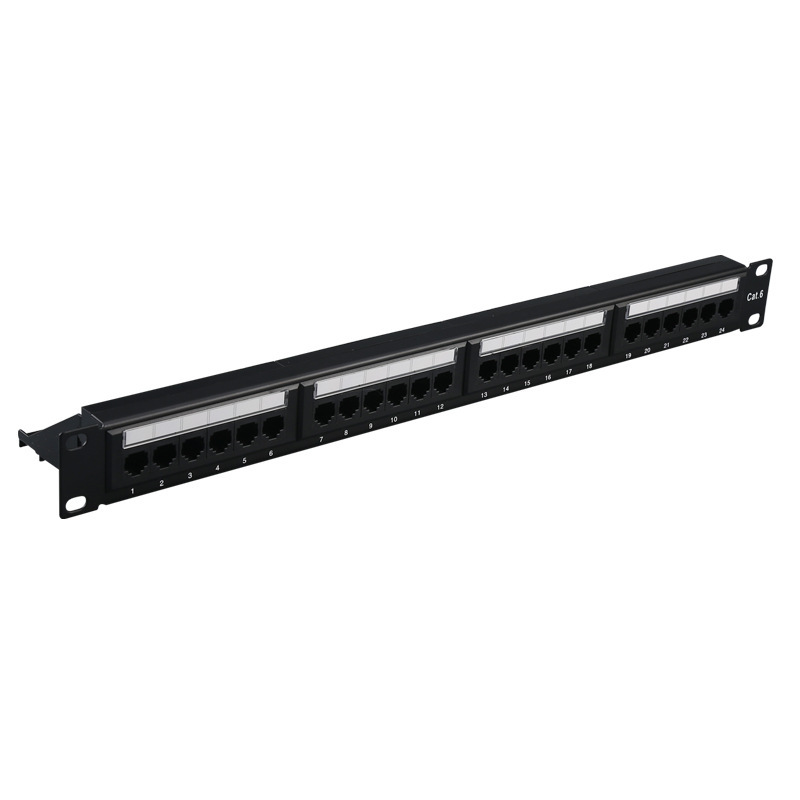

•Standard 19-inch rack mount design, fabricated from high-quality cold-rolled steel sheet for superior mechanical strength.

•Quick-connect design for easy installation and maintenance; each module can be detached and replaced individually, simplifying termination and servicing.

•Complete and clear labeling system to speed up construction, maintenance and management.

•Performance exceeds Cat5e requirements specified by ANSI/TIA 568-C.2 and ISO/IEC 11801.

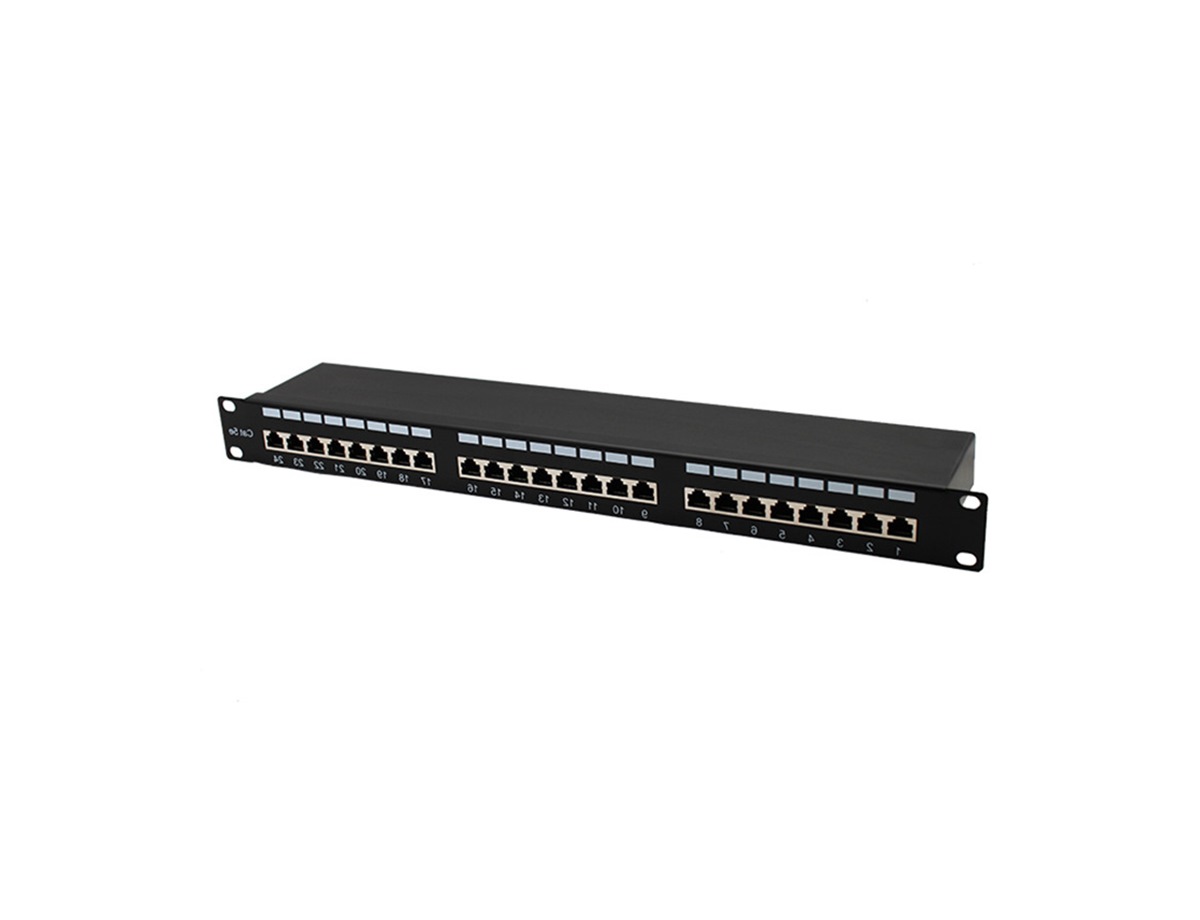

•Standard 19-inch rack-mount structure, constructed from premium cold-rolled steel sheet to deliver superior mechanical strength.

•360° full-shielded enclosure design for effective dust prevention; integrated grounding accessories ensure reliable earthing performance.

•Independent cable fixing structure for each module to firmly secure cables.

•Rear cable management tray for neat and organized cable routing.

•Comprehensive and clear labeling system to simplify construction, maintenance and administration work.

•Performance exceeds Cat5e standards specified by ANSI/TIA 568-C.2 and ISO/IEC 11801.

•Standard 19-inch rack-mount structure with plastic front panel and premium cold-rolled steel housing to ensure high mechanical strength.

•Special jack design prevents pin depression caused by accidental insertion of telephone plugs.

•Dust cap equipped on the rear of each module to avoid link performance degradation from dust accumulation.

•Color coding printed on the termination base enables intuitive and convenient installation & inspection.

•Replaceable label management system streamlines construction, maintenance and administration.

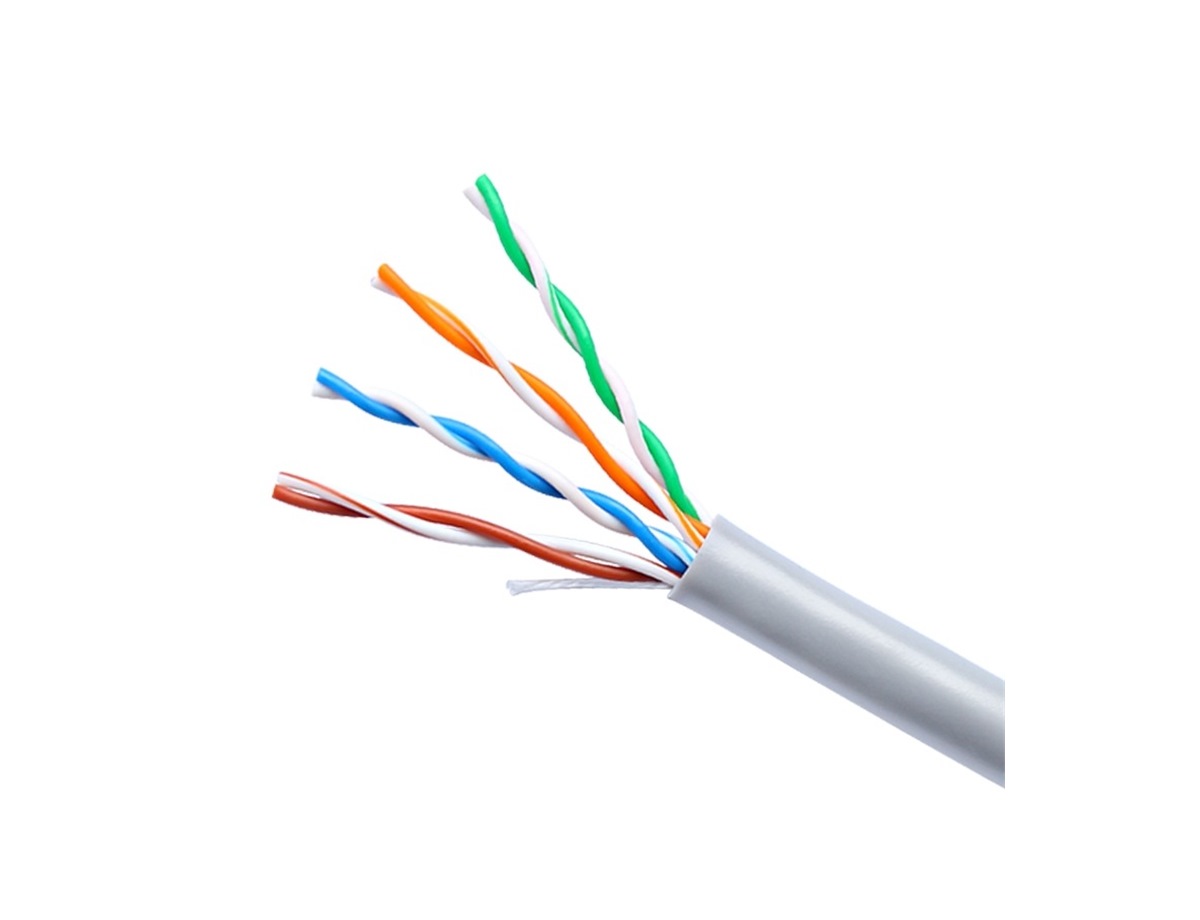

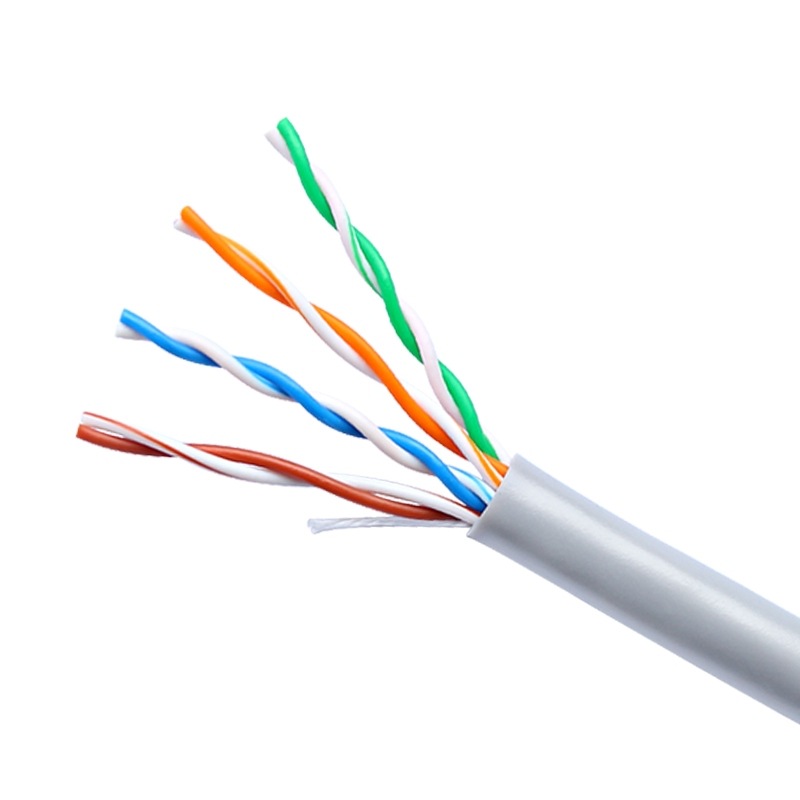

•Carefully selected raw materials with batch-by-batch inspection to guarantee consistent cable quality.

•Single conductors are manufactured via a continuous integrated process of wire drawing, annealing and one-step extrusion molding, producing premium insulated single wires.

•Uniform insulation delivers low propagation delay skew.

•Both insulation and jacket undergo online spark testing to ensure structural integrity and electrical safety.

•Inkjet printing with sequential meter marking on cable surface, featuring clear lettering and precise length metering for convenient field use.

•Supports high-speed transmission of voice and data signals.

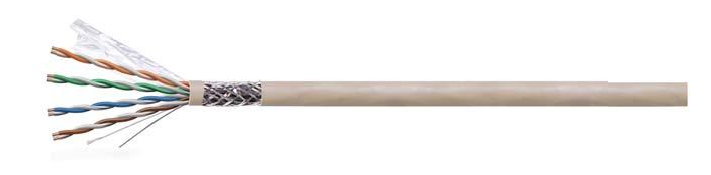

•Carefully selected raw materials with batch-by-batch inspection to guarantee consistent cable quality.

•Single conductors are manufactured via a continuous integrated process of wire drawing, annealing and one-step extrusion molding, producing premium insulated single wires.

•Uniform insulation delivers low propagation delay skew.

•Both insulation and jacket undergo online spark testing to ensure structural integrity and electrical safety.

•Inkjet printing with sequential meter marking on cable surface, featuring clear lettering and precise length metering for convenient field use.

•Supports high-speed transmission of voice and data signals.
