Fiber Splice ClosureStructured CablingCtrlWorks Structured Cabling
- External fasteners and components are all made of high-quality stainless steel.
- Adopts 3 times cable clamping technology to ensure no additional attenuation of optical fibers inside the closure.
- Supports repeated reuse and capacity expansion.
- Equipped with an air valve on the housing for air filling and pressure measurement during sealing inspections.
- Also fitted with a grounding lead-out device on the housing.
Product Description
The optical cable joint closure is a wiring device used to protect optical cable splices during field aerial, manhole duct, and direct buried underground cable connections.
Physical Specifications
Maximum Fiber Count | 144 cores |
Impact Sealing | 16N |
Tensile Sealing (Axial Tensile Force) | ≤2000N |
Dielectric Strength | 15KV(DC) |
Ordering Information
Model No. | Product Name |
S905 | 1-in 1-out Optical Cable Joint Closure (24 cores, expandable to 48 cores) |
S906 | 2-in 2-out Optical Cable Joint Closure (24 cores, expandable to 144 cores) |
S907 | 3-in 3-out Optical Cable Joint Closure (24 cores, expandable to 144 cores) |

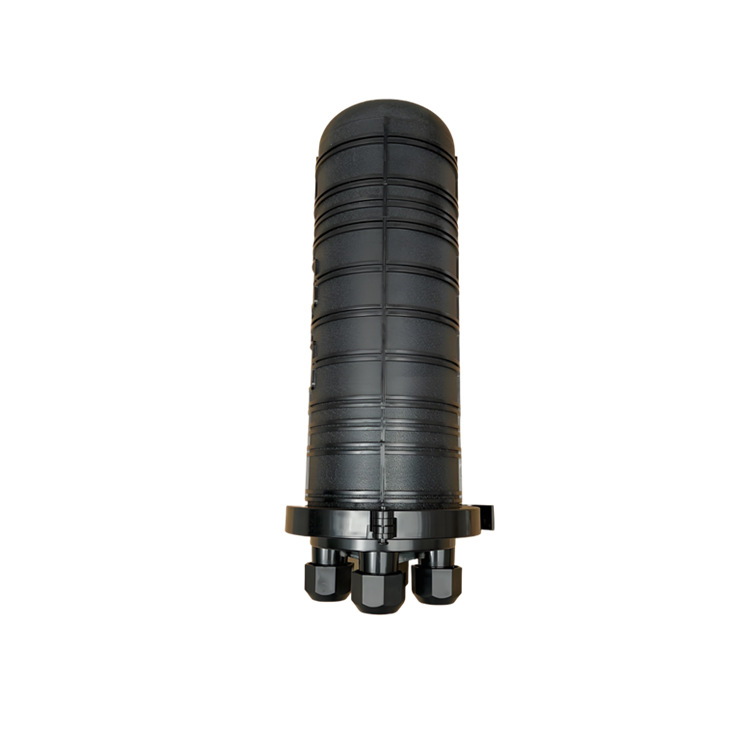

S906-M | 2-in 2-out Dome-type Optical Cable Joint Closure (24 cores, expandable to 144 cores) |
