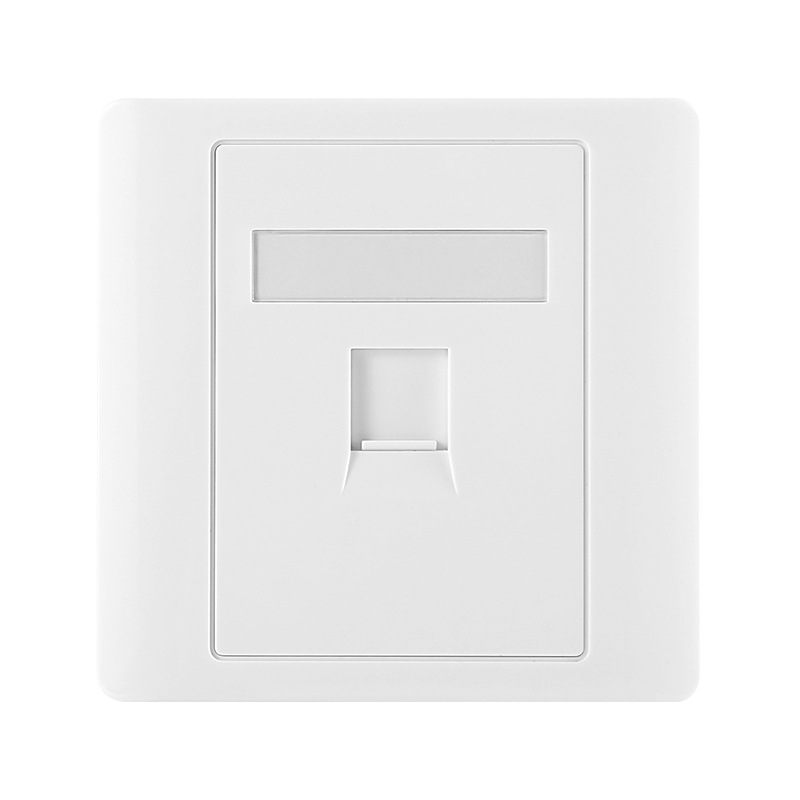

Information Panel

Name: Information Panel
Brand: CtrlWorks
SKU: information-panel
Availability: OutOfStock

Structured Cabling

Products

Information PanelStructured CablingCtrlWorks Structured Cabling

• Faceplates are available in 1-port, 2-port, 3-port, 4-port variants, compatible with standard 86-type mounting boxes.

• All faceplates come with dust shutters to effectively prevent water splashes and dust particle ingress.

• Equipped with label strips or application markers for easy numbering management and maintenance.

• Modular structure with double-layer front & rear panel design for an elegant appearance, concealing fixing screws.

• Material: Engineering ABS plastic.

Standard Specifications

GB17466

Product Description

The information faceplate is used together with information outlet modules to provide external interfaces for information terminals (data & telephone). It supports installation of various module types and is deployed in work areas.

Ordering Information

Model No.	Product Name
A160-1	1-Port 86-Type Information Faceplate
A160-2	2-Port 86-Type Information Faceplate
A160-3	3-Port 86-Type Information Faceplate
A160-4	4-Port 86-Type Information Faceplate
A161-1A	1-Port 86-Type Information Faceplate (PC Marked)
A161-1B	1-Port 86-Type Information Faceplate (Telephone Marked)
A161-2A	2-Port 86-Type Information Faceplate (Telephone / PC Marked)
A161-2B	2-Port 86-Type Information Faceplate (PC / PC Marked)
A161-2C	2-Port 86-Type Information Faceplate (Telephone / Telephone Marked)
A161-1AG	1-Port 86-Type Information Faceplate (PC Marked) (Rose Gold)
A161-1BG	1-Port 86-Type Information Faceplate (Telephone Marked) (Rose Gold)
A161-2AG	2-Port 86-Type Information Faceplate (Telephone / PC Marked) (Rose Gold)
