•Supports 19-inch rack mounting, designed for horizontal cable management inside cabinets.

•Inkjet printing on cable surface with sequential meter marking, clear printing and accurate length metering.

•Sequential length marking printed on cable jacket to reduce material waste.

•Supports transmission of voice and data signals.

• Supports 19-inch rack mounting

•Performance exceeds Cat6 requirements specified by ANSI/TIA 568-C.2 and ISO/IEC 11801.

•Standard 19-inch rack mount design, fabricated from high-quality cold-rolled steel sheet for superior mechanical strength.

•Quick-connect design for easy installation and maintenance; each module can be detached and replaced individually, simplifying termination and servicing.

•Complete and clear labeling system to speed up construction, maintenance and management.

• Designed for standard 19-inch network and server cabinets to provide forced ventilation and heat dissipation.
• It is mounted on the top of the cabinet for easy maintenance and disassembly.
• Optional switch for independent fan control.
• Performance Parameters:Fan dimension: 12012038; Cable length: 1.9m Operating voltage range: 187 ~ 231VAir flow rate: 100CFM; Single fan noise: 24.9dBA Operating temperature: -10℃ ~ +50℃; Continuous service life: 30,000 hours
• Material: The mounting plate is made of high-quality cold rolled steel plate.
• Color: Black
• Accessories: Fixing screws

•Performance exceeds Cat5e requirements specified by ANSI/TIA 568-C.2 and ISO/IEC 11801.

•Standard 19-inch rack-mount structure, constructed from premium cold-rolled steel sheet to deliver superior mechanical strength.

•360° full-shielded enclosure design for effective dust prevention; integrated grounding accessories ensure reliable earthing performance.

•Independent cable fixing structure for each module to firmly secure cables.

•Rear cable management tray for neat and organized cable routing.

•Comprehensive and clear labeling system to simplify construction, maintenance and administration work.

• Designed for standard 19-inch network and server cabinets to deliver forced ventilation and heat dissipation.
• It is installed on the cabinet top for easy maintenance and disassembly.
• Optional switch for independent control of fans.
• Performance Parameters:Fan overall dimension: 12012038; Connecting cable length: 1.9m.Operating voltage range: 187 ~ 231V.Air flow rate: 100CFM; Noise of single fan: 24.9dBA.Operating temperature: -10℃ ~ +50℃; Continuous service life: 30,000 hours.
• Material: The mounting plate adopts high-quality cold rolled steel plate.
• Color:Black
• Accessories:Fixing screws

•Performance exceeds Cat5e standards specified by ANSI/TIA 568-C.2 and ISO/IEC 11801.

•Standard 19-inch rack-mount structure with plastic front panel and premium cold-rolled steel housing to ensure high mechanical strength.

•Special jack design prevents pin depression caused by accidental insertion of telephone plugs.

•Dust cap equipped on the rear of each module to avoid link performance degradation from dust accumulation.

•Color coding printed on the termination base enables intuitive and convenient installation & inspection.

•Replaceable label management system streamlines construction, maintenance and administration.

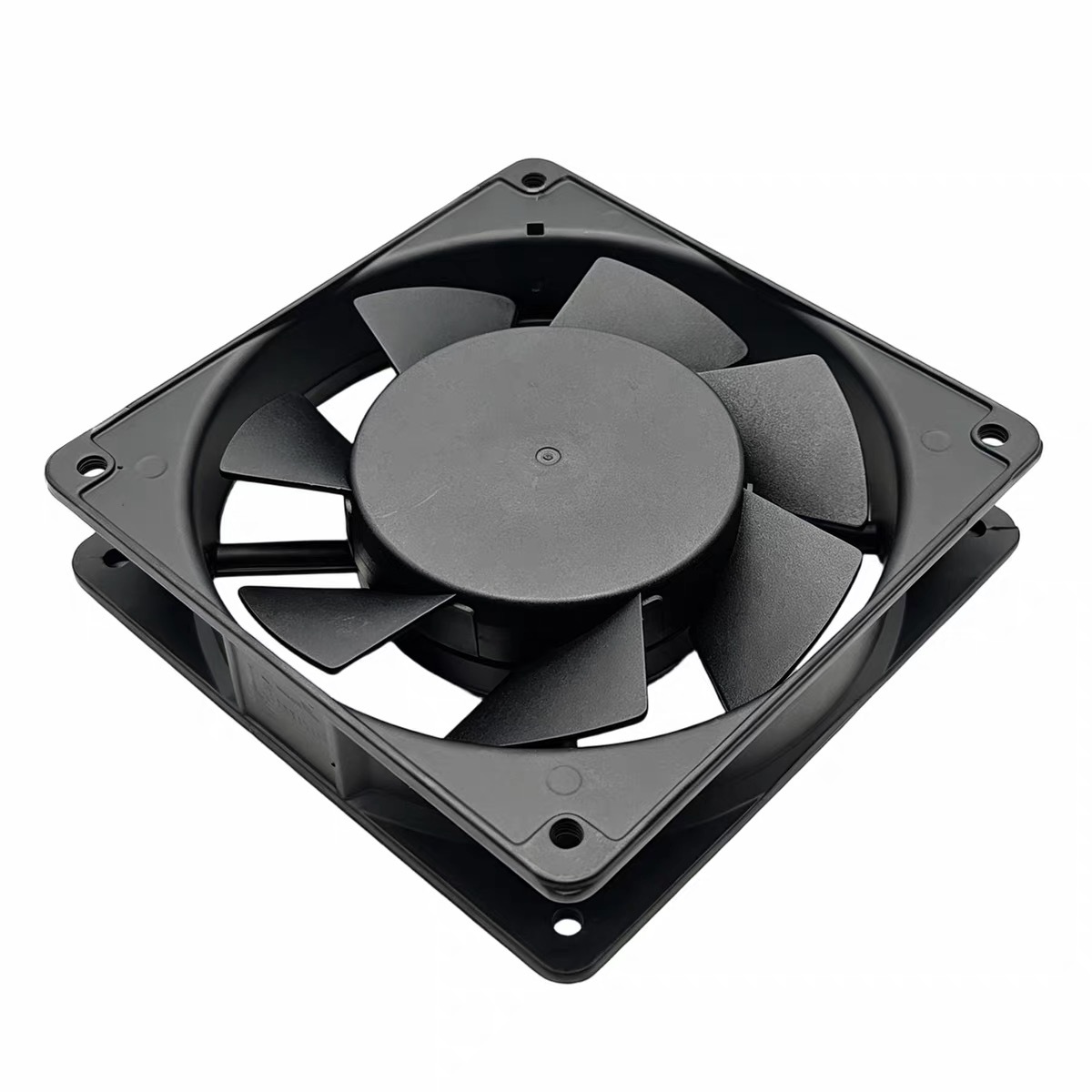

• Optional accessory for ventilation and heat dissipation of wall-mounted cabinets.
• Performance Parameters: Overall dimension: 12012038
• Air flow rate: 50CFM, single fan noise: 24.9dBA
• Operating temperature: -10℃ ~ +50℃, continuous service life up to 30,000 hours
• Ball bearing fans need to be ordered separately when required.
• Nickel-plated fan guard and connecting cable are available for separate ordering

•Carefully selected raw materials with batch-by-batch inspection to guarantee consistent cable quality.

•Single conductors are manufactured via a continuous integrated process of wire drawing, annealing and one-step extrusion molding, producing premium insulated single wires.

•Uniform insulation delivers low propagation delay skew.

•Both insulation and jacket undergo online spark testing to ensure structural integrity and electrical safety.

•Inkjet printing with sequential meter marking on cable surface, featuring clear lettering and precise length metering for convenient field use.

•Supports high-speed transmission of voice and data signals.

•Carefully selected raw materials with batch-by-batch inspection to guarantee consistent cable quality.

•Single conductors are manufactured via a continuous integrated process of wire drawing, annealing and one-step extrusion molding, producing premium insulated single wires.

•Uniform insulation delivers low propagation delay skew.

•Both insulation and jacket undergo online spark testing to ensure structural integrity and electrical safety.

•Inkjet printing with sequential meter marking on cable surface, featuring clear lettering and precise length metering for convenient field use.

•Supports high-speed transmission of voice and data signals.

•Equipped with RJ45 ports, compatible with Cat6 and Cat5e patch cords.

•Each module can be detached individually.

•Dust caps are fitted on the rear of modules to effectively prevent dust from impairing link performance.

•Standard 19-inch rack mounting, tool-free termination supported for quick and easy installation, maintenance and capacity expansion.

•Available in 25-port and 50-port versions.

•Designed with IDC technology; both upper and lower rows of incoming and outgoing cables are terminated from the front panel for faster installation and maintenance.

•Equipped with a labeling system to simplify field installation, maintenance and cable management.

•Compatible with 110-style cross-connect frames, available in 4-pair and 5-pair connecting blocks.

•The 4-pair connecting block is primarily for horizontal voice cabling, while the 5-pair connecting block is designed for backbone voice cabling.

•Matched with dedicated multi-pair IDC termination tools.

•Clearly printed markings facilitate on-site cable termination.

• Standard 19-inch rack-mount installation for power supply of equipment, equipped with a switch with red indicator light.
• Parameter: Connecting cable length: 1.8m.
• Color: All black.
• Frequency: 50 ~ 60Hz.
• Current: 10A.
• Voltage: 220V ~ 250V.

•Reserved fiber storage space for coiling excess fiber

•Can be used standalone or matched with standard 86-type wall back box

•Easy installation with reliable fixation

•Color: Ceramic White

•Material: ABS plastic

•Excellent compatibility, repeatability and interchangeability

•High-precision dimensional tolerance, premium wear-resistant materials

•Latch-type plug-in structure with outstanding stability
