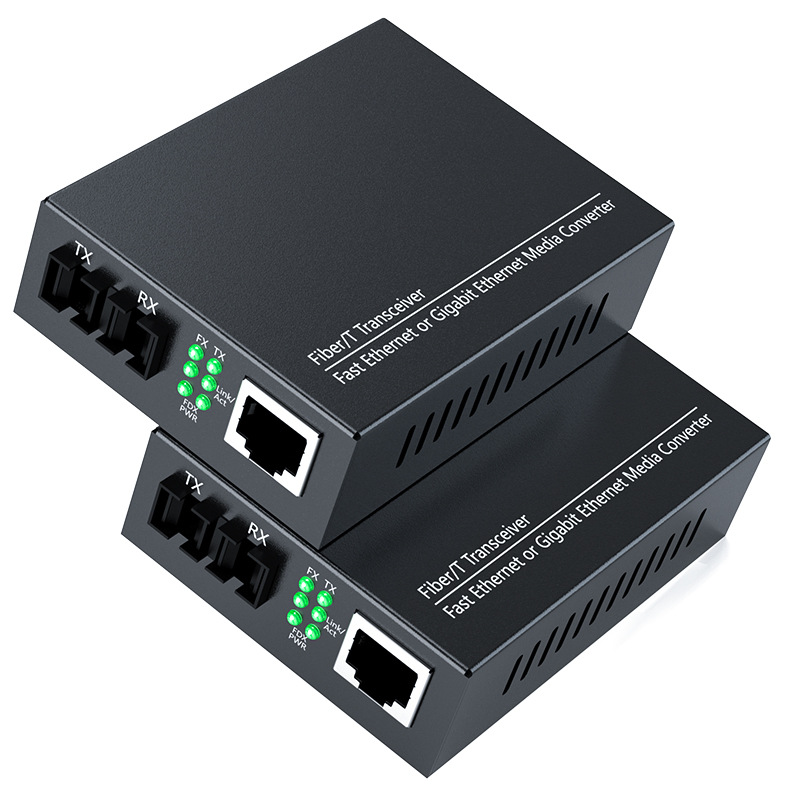

10/100/1000M Media Converter (SM/MM, Single/Dual Fiber)

Name: 10/100/1000M Media Converter (SM/MM, Single/Dual Fiber)
Brand: CtrlWorks
SKU: 10-100-1000m-media-converter-sm-mm-single-dual-fiber
Availability: OutOfStock

Structured Cabling

Products

10/100/1000M Media Converter (SM/MM, Single/Dual Fiber)Structured CablingCtrlWorks Structured Cabling

•Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3d, IEEE 802.3x, IEEE 802.3Q protocols.

•Bandwidth: 10/100/1000M for electrical port, 1.25G for optical port.

•Full-duplex / half-duplex mode with automatic full-duplex/half-duplex negotiation function.

•Electrical port: RJ45; Optical port: SC/FC/ST.

Physical Specifications

Item	Single-mode	Multi-mode
Operating Wavelengt(Dual Fiber/Single Fiber)	1310nm, 1550nm	850nm, 1310nm
	1310T/1550R 1550T(DFP)/1310R	1310/1550nm
Core Diameter	9/125μm	50/125μm, 62.5/125μm
Transmission Distance(Dual Fiber/Single Fiber)	20Km,40Km,60Km,100Km	20Km,40Km,60Km,80Km
	20Km,40Km,60Km,80Km

Electrical & Physical Characteristics

Power Supply Mode	Built-in	External
Power Supply Voltage	110 – 220V AC, 48VDC	DC 5V 1A
Operating Ambient Temperature	0 – 50℃
Relative Humidity	5%~90%
Overall Dimensions	140mm110mm30mm	94mm70mm25mm

Ordering Information

Model No.	Product Name
SB1000	10/100/1000M Multi-mode Dual Fiber Media Converter (External Power Supply)
SA1000-20	10/100/1000M Single-mode Dual Fiber Media Converter (External Power Supply) - 20Km
SSB1000-X	10/100/1000M Multi-mode Single Fiber Media Converter (External Power Supply)
